Powertrain

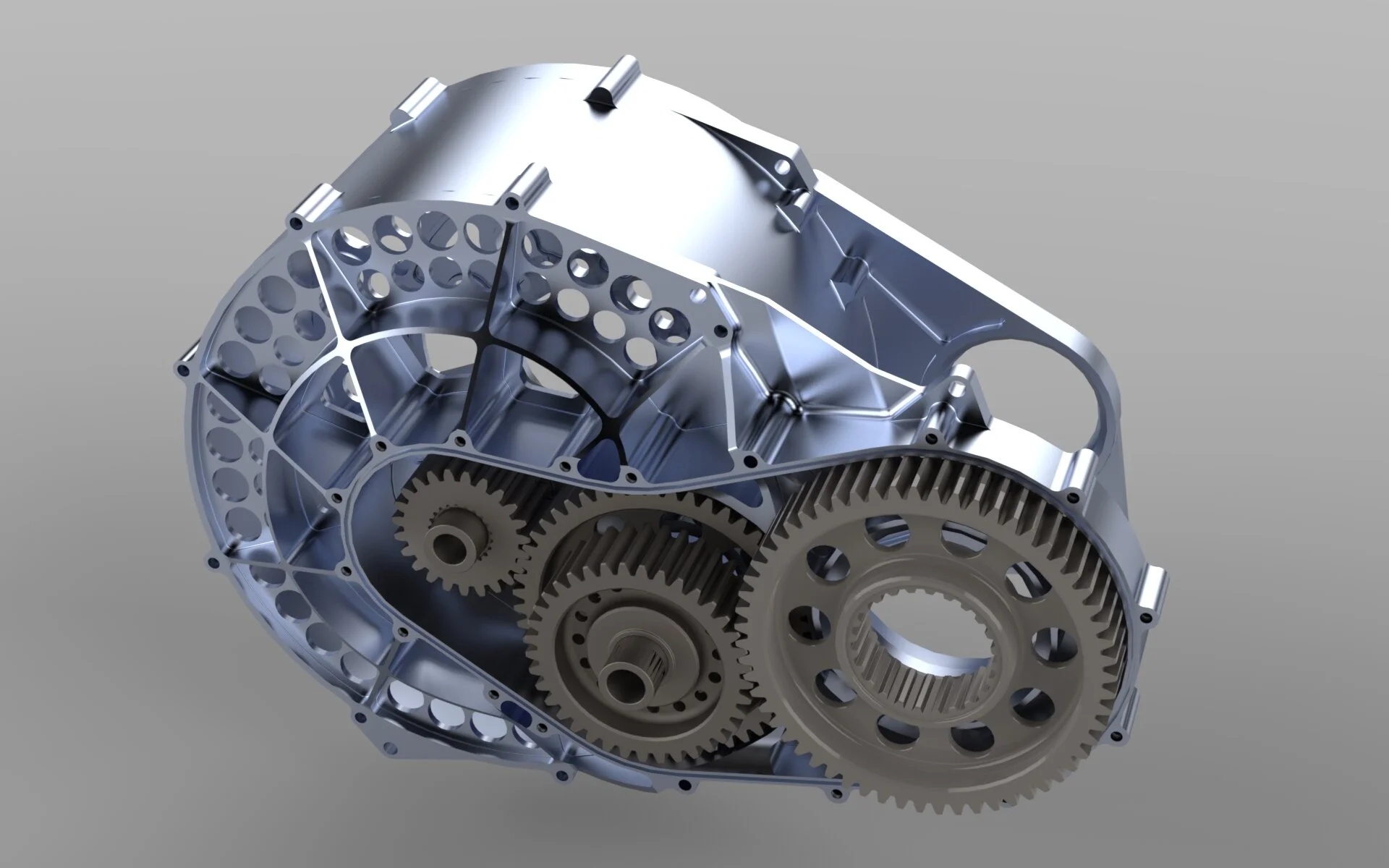

HR20-E’s powertrain was a complete redesign from HR19-E’s outboard motor architecture based on a hard lesson learned to master the fundamentals of powertrain before attempting to innovate. With this in mind, 20-E’s powertrain was designed based around utilizing a single Emrax 228 electric motor to drive the vehicle. While we scaled back the degree to which we innovated, the powertrain still contains a custom designed gear reduction system based on the electric vehicle automotive standard of a single speed, two stage gear train.

Technical Specifications:

  • Emrax 228 100 kW electric motor

  • 4340 steel heat treated to 200ksi used for gears

  • 4140HTSR steel used for shafts

  • Sealed gearbox with passive oil lubrication

  • Drexler limited slip differential Formula Student V1
